8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861

Product Categories

HUNAN CHARMHIGH ELECTROMECHANICAL EQUIPMENT CO., LTD.

Contact Now

Name: 8 Heads Pick and Place Machine CHM861 100 Feeders Auto Rail Auto Change Nozzle CHM861
Brand: Charmhigh
Price: 1 USD

Brand Name : Charmhigh

Model Number : CHM-861

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 15 work days

Packaging Details : wooden box

Dimensions : 1600mm(L)×1430mm(W)×1530mm(H)

Weight : 1596kg

Power Supply : AC380V (50Hz, three phase), 4.5kW

Air Supply : 0.5MPa ~0.7MPa

Vacuum Generation : Built-in vacuum pump

Mounting Head Quantity : 8

PCB Thickness : 0.6mm~3.5mm

PCB Conveying : 3-section-rail automatic conveying, PCB support

Nozzle Change : Automatic nozzle change (37-hole nozzle library)

Feeding System : 100 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder)

Contact Now

8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861

CHM-861 Specifications
Dimensions	1600mm(L)×1430mm(W)×1530mm(H)
Weight	1596kg
Power Supply	AC380V (50Hz, three phase), 4.5kW
Air Supply	0.5MPa ~0.7MPa
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	8
Mounting Speed	33100cph (optimal)
Mounting Accuracy	(xy)±50μm CPK≥1.0
Control Accuracy	4μm
Component Height	12mm
Component Type	0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	450mm(L)×350mm(W) (standard); 1200mm(L)×350mm(W) (optional)
PCB Conveying	3-section-rail automatic conveying, PCB support
Nozzle Change	Automatic nozzle change (37-hole nozzle library)
Control System	Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse
Drive System	X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System	X&Y axis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws)
Feeding System	100 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder)
Vision System	Fly camera×8 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2

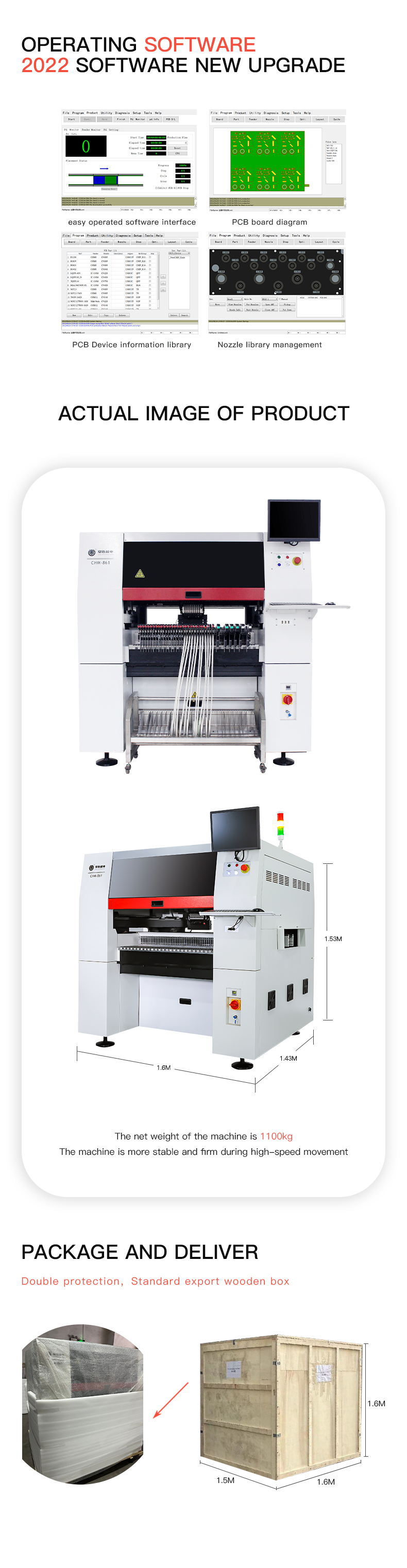

8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861 Images
