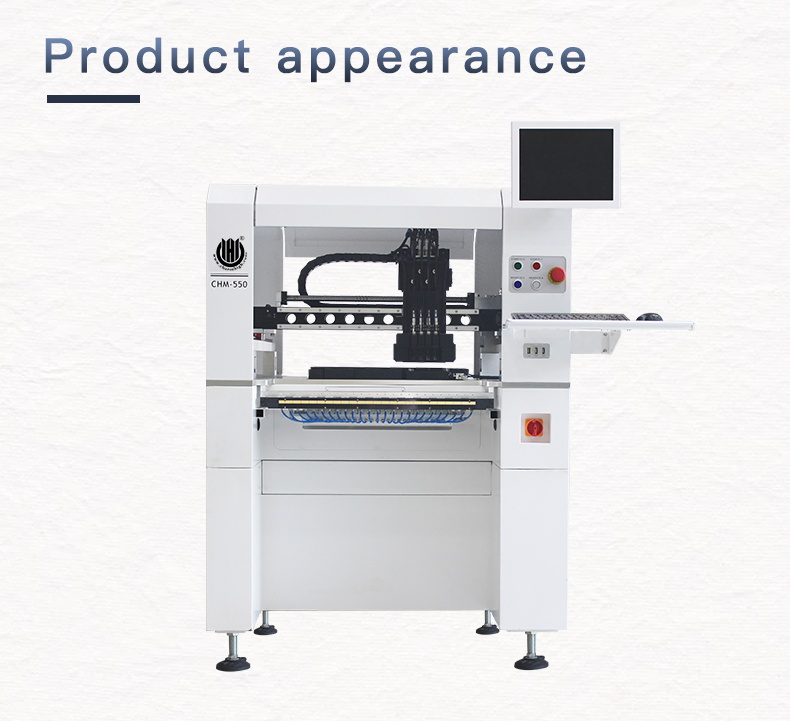

High Efficiency 4 Head CHM-550 CPK Smd Manual Small Led Pick And Place Machine PCBA Production Line

Name: High Efficiency 4 Head CHM550 CPK Smd Manual Small Led Pick And Place Machine PCBA Production Line
Brand: Charmhigh
Price: 1 USD

Buy cheap High Efficiency 4 Head CHM-550 CPK Smd Manual Small Led Pick And Place Machine PCBA Production Line product

Brand Name : Charmhigh

Model Number : CHM-550

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 setper month

Delivery Time : 15 works

Packaging Details : Wooden Box

Component Height : 12mm

PCB Thickness : 0.6mm~3.5mm

PCB Size : 400mm(L)×350mm(W)

Nozzle Change : Automatic nozzle change (13 hole nozzle library)

Transmission System : Ball screw + linear guide

Mounting Head Quantity : 4

Contact Now

High Efficiency 4 Hhead
CHM-550 SmdManual Small Led Pick And Place Machine PCBA Production Line

CHM-550 Specifications
Dimensions	980mm(L)X 1050mm(W) X 880mm(HD)
Weight	190kg
Power Supply	AC220V (50Hz,single phase) 600W
Air Supply	0.5MPa ~0.7MPa
Vacuum Generation	Vacuum generator (Japan PISCO)
Mounting Head Quantity	4
Mounting Speed	6500cph ( Visual inspection)
Mounting Accuracy	±50μm@μ±3σ/chip
Control Accuracy	5μm
Component Height	12mm
Component Type	0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	400mm(L)×350mm(W)
Nozzle Change	Automatic nozzle change (13 hole nozzle library)
Control System	Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse
Drive System	X&Y axis driven by servo motors;adopting flexible S-curve acceleration and deceleration

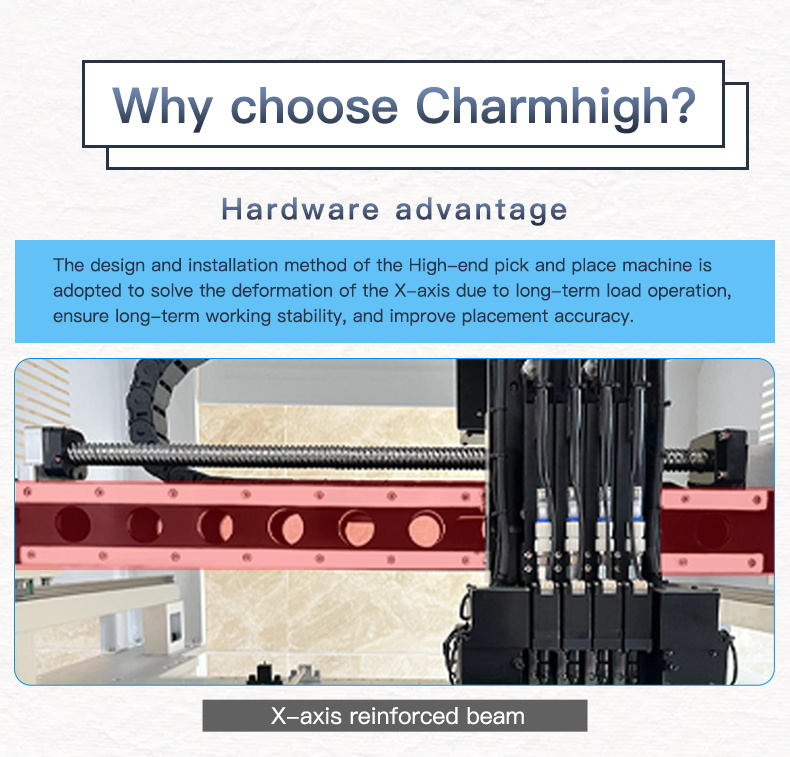

Transmission System	Ball screw + linear guide
Feeding System	50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder)
Vision System	Snapshot camera×4 (component size applicable: 14mm×14mm); IC camera×1 (component size applicable: 25mm×25mm); Mark camera×2

High Efficiency 4 Head CHM-550 CPK Smd Manual Small Led Pick And Place Machine PCBA Production Line

Q: How about the warranty?
We support one year warranty. We will regularly update the software for customers. If there is any doubt in the process of operating the machine,please feel free contact us. We will help you in time.All the spare parts will be provided free of charge for you within the warranty period.

Q: This is the first time I use this kind of machine, is it easy to operate?
Yes. There are English manual and guide video that show you how to use machine.If there is any doubt in the process of operating the machine, please feel free contact us.We provide overseas distance learning services

Q: Can we customize the machine?

Of course. Our machines can custom made provide the number of stacks and the maximum size of PCB boards

Q: What we can do for you?

One-stop SMT Solution Supplier; Reliable SMT Partner

Q: What is your delivery date?
The delivery date is about 15 days upon the full payment.
