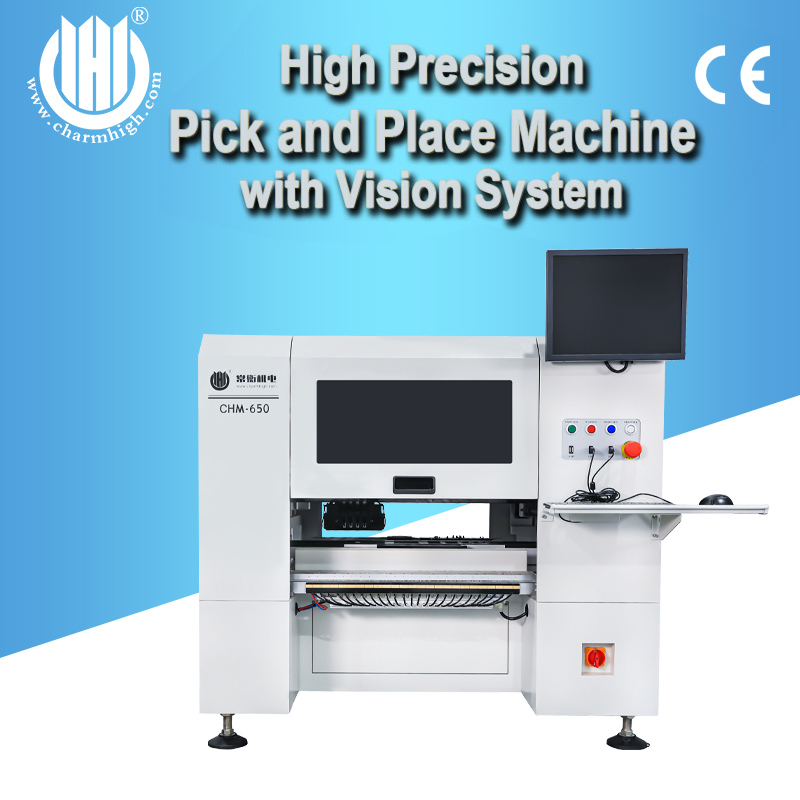

4 Heads Vertical SMT Pick And Place Machine CHM-650 High Speed High Precision Automatic PNT Machine For Assembly Line
Our company's pick and place machine software was developed by ourselves.
The software is available in English.
And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
Suitable for experimental development, production and processing, education and teaching
| CHM-650 Specifications |
| Dimensions | 1280mm(L)×1190mm(W)×1050mm(H) |
| Weight | 310kg |
| Power Supply | AC220V (50Hz, single phase), 2.1kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Vacuum generator |
| Mounting Head Quantity | 4 |
| Mounting Speed | 10000cph(optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) |
| PCB Conveying | 3-section-rail automatic conveying |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors;adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camera×4 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
Charmhigh already owns 24 property rights, including 22 national patents and two software copyrights and has passed ISO quality management system certification, EU CE certification, ROHS certification, and US FCC, SGS and other international certifications.
FAQ:
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Q;Is it hard to use these machines?
A:No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
Q:This is the first time I use this kind of machine, is it easy to operate?
A:Yes. There are English manual and guide video that show you how to use machine.If there is any doubt in the process of operating the machine, please feel free contact us.We provide overseas distance learning services
Q:Can we customize the machine?
A:Of course. Our machines can custom made provide the number of stacks and the maximum size of PCB boards
