High Quality SMT Desktop Small Mini Chip Mounter CHM-T530P4
We have units in stock ready for immediate delivery!
Shops seeking to increase their in-house capabilities with a full-featured PnP machine will achieve better schedule management and cost control using the T48VB. It is the one machine that delivers best-in-class Yearly-Yield for fast payback. The low cost places the T48VB within reach for shops of all sizes that do not require PnP machine integration with an automated line. If you’re seeking alternatives to outsourcing prototypes and short runs with affordable and easy-to-implement in-house operations, the T48VB is the one solution to keep you on schedule and on budget.
Proven Technology
The Charmhigh T48VB is an evolutionary product that is a direct result of many years of experience building a wide variety of PnP machines for the electronics industry, universities, research labs, and creative shops. We have applied our deep knowledge of machine design and production best practices to deliver the kinds of features and performance that enable even the smallest shops to take the step into in-house prototyping and small-batch manufacturing.
| CHM-T530P4 Specifications |
| Dimensions | 1060mm(L)×780mm(W)×600mm(H) |
| Weight | 115kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase);400W |
| Air Supply | 0.5MPa~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 |
| Mounting Speed | 8000cph(optimalwithout vision detection); 5500cph (optimal with vision detection) |
| Control Accuracy | 0.015mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～400mm(L)×330mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | Built-in computer (embedded Linux operating system), 7-inch touch screen |
| Drive System | X&Y-axisdriven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration |
| Transmission System | Synchronous belt + linear guide |
| Feeding System | 30 Yamaha standard pneumatic feeder stacks (also suitable for Yamaha electric feeder, IC tray, and stick feeder), 11 preset general IC stacks, worksurface custom IC trays supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |

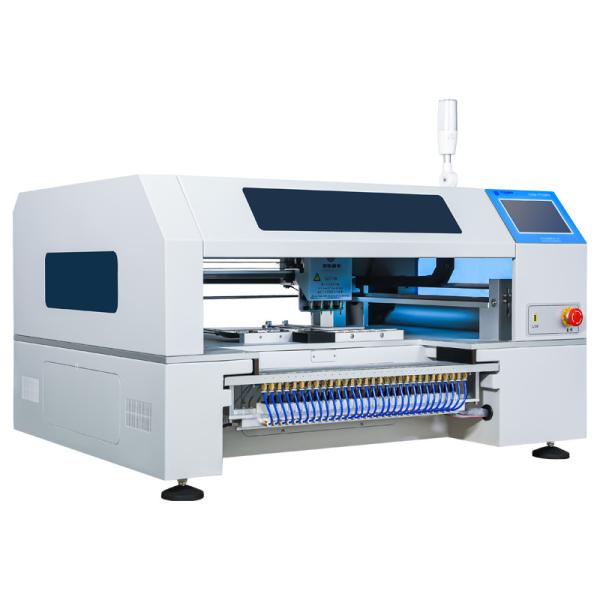

Automatical Pick and place machine :The CHM-T530P4 with Vision system ,
the speed can reach 8000cph
The software operation interface is simple and easy to use
Four taps work at the same time, the speed is faster. The four taps can rotate 360 degrees, and the angle rotation linkage is completed, which does not affect the mounting efficiency. The z-axis can detect the height and angle of the four taps, so as to ensure the stability of different original devices when the span is large
PCB clamping area: maximum support 400 mm* 330mm, suitable for PCB board of various processes
Dual vision calibration can accurately calibrate IC devices and automatically correct the reclaiming error. Industrial high-precision CCD is used to collect IC pins to ensure more accurate calculation and mounting accuracy
Support tube loading material: tube loading feeder can support three tube and five tube material assembly, and the amplitude and height can be adjusted to achieve wider mounting efficiency
Hunan Charmhigh Electromechanical Equipment Co., Ltd is the well-known manufacturer of high-end SMT equipment in China.
The company is located in the Changsha High-tech Development Zone, covering a total area of 3600 square meters.
As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology
for more than ten years.
Different series of multi-head full-automatic SMT machines have been developed and manufactured by Charmhigh to meet various practical production needs.
In accordance with the business philosophy of “Customer First, Innovation Paramount”, Charmhigh has won the hearts of thousands of customers all over the world.
FAQ
1. Q: How many nozzles do you supply? Do you sell nozzles and spares?
A: The CHM-T530P4 has four nozzle-heads, we supply 4 nozzles. Yes, we do sell nozzles and spares. If you need any spare parts, just let us know.
2. Q: Do you provide software updates?
A: Customers who buy our machines, we can offer free upgrades software for you.
3. Q: What air supply is required?
A: Oil free compressor and air dryer be used.
4.Q: Whether the linear guide rail and round rod have an impact on the accuracy of the SMT pick and place machine ?
A:No impact at all .Using linear guide rail or round rod has no effect on the accuracy of the mounting machine, the precision of the mounting machine depends on the motor and software control system used by the mounting machine only.
5. Q:Is the software control system of your desktop SMT independently developed by your company?
A:Yes, our desktop SMT uses Linux system. Linux system supports cross-platform hardware support, rich software support, reliable security and stability.
6. How about the warranty?
A: We support one year warranty. We will regularly update the software for customers. If there is any doubt in the process of operating the machine, please feel free contact us.
All the spare parts will be provided free of charge for you within the warranty period.
|
|
