New Product CHM-751 6 Head SMT CPK Chip Mounter Machine With Pcb Component Mounting Machine
CHM-751 has 6 heads, mounting speed is faster. For SMT production, it is your good helper!
The operation system is Windows 10 system, the main board of machine was researched by ourselves, which is more reliable, and life time is much longer. CHM-751 using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP, QFN, LQFP, Diode, Transistor, BGA...etc, which can meet more customers' demand.
| CHM-751 Specifications |
| Dimensions | 1280mm(L)×1190mm(W)×1470mm(H) |
| Weight | 540kg |
| Power Supply | AC220V (50Hz, single phase), 2.8kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Japan PISCO Vacuum generator |
| Mounting Head Quantity | 6 |
| Mounting Speed | 15000cph (optimal) |
| Mounting Accuracy | ±60μm CPK≥1.0(XY) |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) |

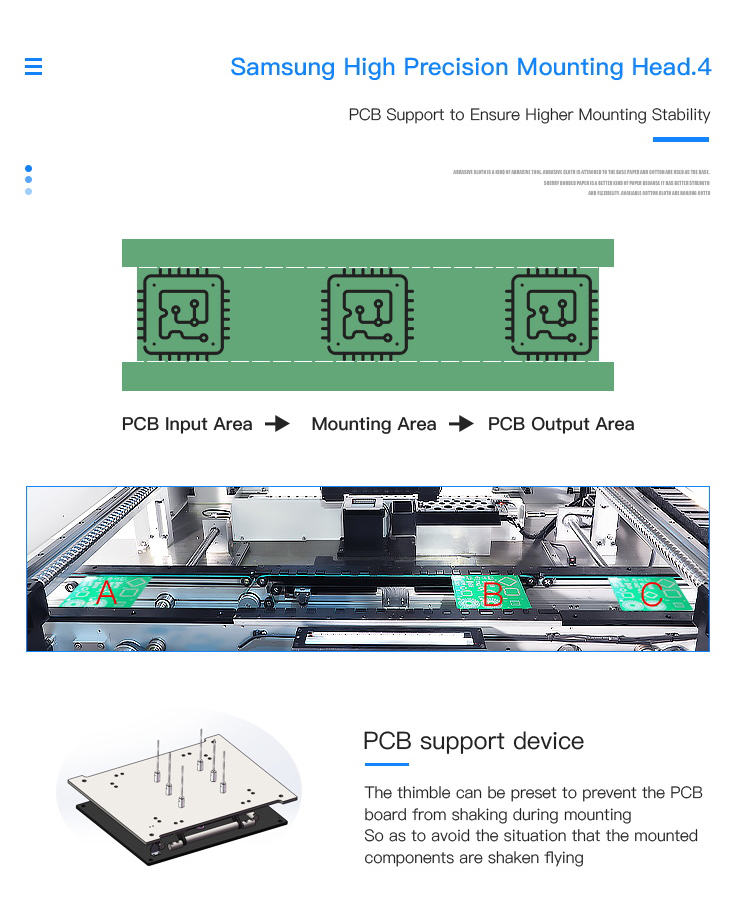

| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ground Ball screw + linear guide (Y axis with double screws) |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
Notes
1.Machines need keeping away from the humid environment and dust, or which will get on electrical shock and fire.
2.Machines need lying stable platform, or which the shake may lead to reduce the precision and even turn over and personal injury.
3.Don’t dismounting the machines casually, or the machine may be broken.
4.Don’t touch the optical axis and the mounting head, or which may damage the machine and hurt yourselves.
5.Make sure the machine engine accordance with the requirements of the standard machine and make sure lie on the ground very well.
6.Make sure the machine away from the inflammables and explosives to avoid the fire and getting the electric shock.
7.Take the small machine parts like suction nozzle at the place where the babies can’t touch.
8.Don’t take the pulling needle stretch out for too long time, or the pulling needle will be broken.
9.Don’t take the machine in the Sun or the highlight directly, or which will reduce the machine precision and even broke the machine.
10.Please kindly contact us if any other questions.
