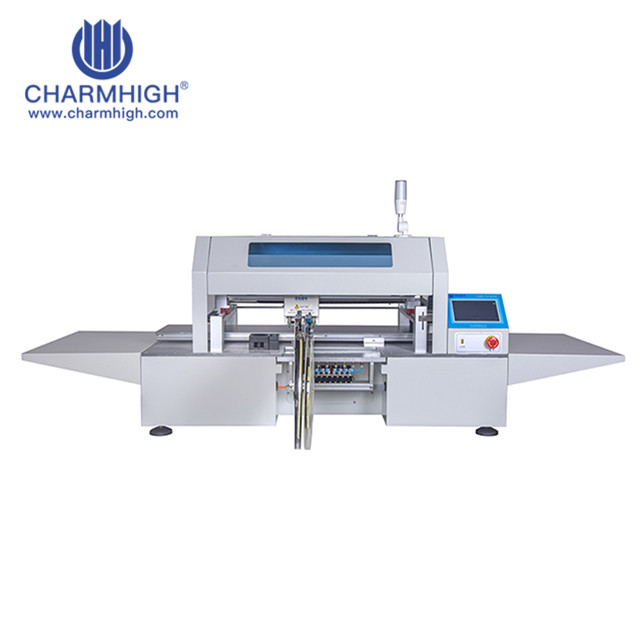

| Dimensions | 2060mm(L)×605mm(W)×700mm(H) |
| Weight | 145kg |
| Power Supply | AC220V (50Hz, single phase)/AC110V (60Hz, single phase); 400W |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 |
| Mounting Speed | 11000cph(optimalwithout vision detection); 5500cph (optimal with vision detection) |
| Control Accuracy | 0.015mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～1200mm(L)×240mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | Built-in computer (embedded Linux operating system), 7-inch touch screen |
| Drive System | X&Y-axisdriven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration |
| Transmission System | Synchronous belt+linear guide |
| Feeding System | 8 Yamaha standard pneumatic feeder stacks, Yamaha electric feeder supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
Packing & Delivery
Certificates
Exhibitions
FAQ
1. Who are we?
We are based in Hunan, China, starting from 2009, selling to Domestic Market(45.00%), North America (10.00%),Southeast Asia(8.00%), Western Europe(8.00%), South America(7.00%), Oceania(4.00%), South Asia(4.00%), Eastern Asia
(3.00%), Northern Europe(3.00%), Africa(2.00%), Central America(2.00%), Southern Europe(2.00%), Eastern Europe(1.00%),
Mid East(1.00%).
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.What can you buy from us?
Pick and place machine, smt production line, stencil printer, reflow oven, cnc machine.
4. Why should you buy from us not from other suppliers?
Hunan Charmhigh Electromechanical Equipment Co., Ltd. has been a modern science and technology enterprise fully capable of research&development, manufacturing, and marketing of pick and place machine as well as SMT peripheral equipment for over 12 years.
5. What services can we provide?
Accepted Delivery Terms: FOB, EXW； Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T,Credit Card,Cash; Language Spoken: English, Chinese
Our Services
1. Before-sales Services
Our salespersons always professionally, patiently, and sincerely introduce, recommend, and demonstrate different model of machines for our customers, so that the customers could choose the most suitable one in terms of their budget and practical production needs.
2. In-sales Services
This kind of services include providing customers with one-stop SMT solutions, overall and detailed quotation, clear and
standard contract. During the whole process, our salespersons will actively communicate with the customers as to every aspect of the deal. As a result, our customers feel really happy and reassured about their purchase of our products.
3. After-sales Services
After-sales services refers to the provision of training and guidance for our customers to operate the newly-purchased machines, the maintenance of the machines in use, and the updating of the software as well as firmware. While enjoying our wholehearted after-sales supports, our customers unanimously express that they are greatly satisfied with the products and services provided by Hunan Charmhigh Electromechanical Equipment Co., Ltd.
