4 Heads 50 Feeders SMT Pick And Place Machine For PCB Assembly

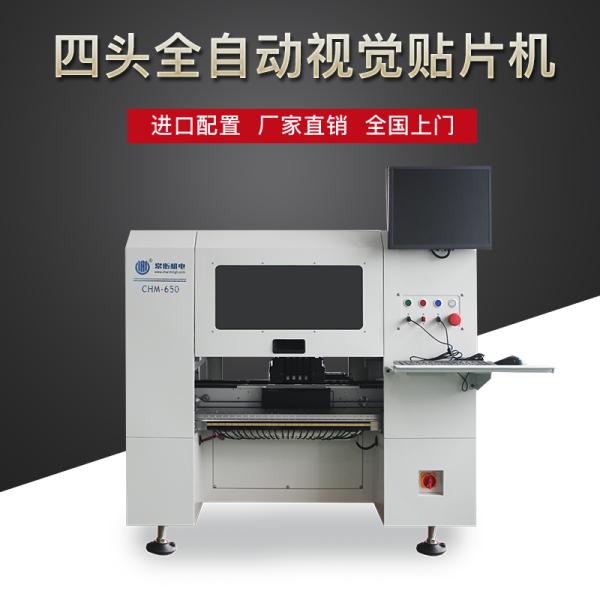

CHM-650 Introduction
This is CHM-650, a high-speed and good-performance pick and place machine of Hunan Charmhigh Electromechanical Equipment Co., Ltd.
CHM-650 Pick and Place Machine is characterized by 50 feeder stacks, 4 heads capable of 360-degree rotation,support for Yamaha pneumatic feeders ,stick feeders with tubular components, automatic correction to pick components, integrated operation with built-in industrial computer.
CHM-650 Parameters
| CHM-650 Specifications |
| Dimensions | 1280mm(L)×1190mm(W)×1050mm(H) |
| Weight | 310kg |
| Power Supply | AC220V (50Hz, single phase), 2.1kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Vacuum generator |
| Mounting Head Quantity | 4 |
| Mounting Speed | 10000cph(optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) |
| PCB Conveying | 3-section-rail automatic conveying |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camera×4 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
Our Service
The machine has a warranty period of 1 year from the time of purchase and lifetime service.
Each machine 100% test well before ship out.
Support as well as a long term factory price supply.
We can provide online Q/A support and technical advice service.
We will provide one to one after-sale service.
If you want to get more videos or information ,Please don't hesitate to contact me,we will response you at first time.
Tel:+86 19974864109/0731-85504084
Email:Yumikozhou@charmhigh.com
WhatsApp/WeChat ID/Skype ID :+86 19974864109
website:Http://en.charmhigh.com
